Hey there! As a supplier of EMC Shielded Rooms, I often get asked about the materials used to build these specialized spaces. In this blog post, I'll break down the key materials and explain why they're so important for creating an effective electromagnetic shield.
Why EMC Shielded Rooms Matter
Before we dive into the materials, let's quickly talk about why EMC (Electromagnetic Compatibility) Shielded Rooms are necessary. These rooms are designed to block out external electromagnetic interference (EMI) and prevent internal electromagnetic signals from leaking out. This is crucial for a variety of applications, such as electronic device testing, medical equipment calibration, and data security.
Key Materials for EMC Shielded Rooms
1. Steel
Steel is one of the most commonly used materials in EMC Shielded Rooms. It's a great conductor of electricity, which allows it to absorb and redirect electromagnetic waves. There are different types of steel used, including cold-rolled steel and galvanized steel.
Cold-rolled steel is known for its smooth surface and high strength. It's often used for the structural components of the shielded room, like the frames and panels. Galvanized steel, on the other hand, has a zinc coating that protects it from corrosion. This makes it ideal for areas where the room may be exposed to moisture or harsh environmental conditions.
2. Copper
Copper is another excellent conductor of electricity and is widely used in EMC shielding. It has a high electrical conductivity, which means it can effectively block electromagnetic waves. Copper is often used in the form of sheets or foils to line the interior of the shielded room.
One of the advantages of copper is its flexibility. It can be easily shaped and installed to fit the contours of the room. Copper also has good thermal conductivity, which helps to dissipate heat generated by electronic equipment inside the room.
3. Aluminum
Aluminum is a lightweight and corrosion-resistant material that's also used in EMC Shielded Rooms. It has a lower electrical conductivity than copper and steel, but it's still effective at blocking electromagnetic waves. Aluminum is often used for the outer layers of the shielded room, as it provides a good balance between shielding performance and weight.
Aluminum is also easy to work with and can be fabricated into various shapes and sizes. It's commonly used for the doors, windows, and ventilation systems of the shielded room.
4. Conductive Paints and Coatings
Conductive paints and coatings are used to enhance the shielding performance of the room. These products contain conductive particles, such as silver or nickel, that create a continuous conductive surface. They can be applied to the walls, ceilings, and floors of the shielded room to fill in any gaps or seams and improve the overall shielding effectiveness.
Conductive paints and coatings are also useful for retrofitting existing rooms. They can be applied to the interior surfaces of a regular room to turn it into a basic EMC shielded room.
5. Gaskets and Seals
Gaskets and seals are essential for preventing electromagnetic leakage around the doors, windows, and other openings in the shielded room. These products are made from conductive materials, such as rubber or silicone, that are impregnated with metal particles.
When the doors and windows are closed, the gaskets and seals create a tight seal that blocks electromagnetic waves from entering or leaving the room. They also help to reduce noise and vibration, which can improve the overall comfort and functionality of the shielded room.
Different Types of EMC Shielded Rooms and Their Materials
Rf Shielded Room
An RF (Radio Frequency) Shielded Room is designed to block radio frequency electromagnetic waves. These rooms are commonly used for testing wireless devices, such as smartphones, Wi-Fi routers, and Bluetooth devices.
The materials used in an RF Shielded Room are similar to those used in a standard EMC Shielded Room, but they may be optimized for specific frequency ranges. For example, the steel panels may have a thicker coating of conductive paint to improve the shielding performance at higher frequencies. You can learn more about Rf Shielded Room.

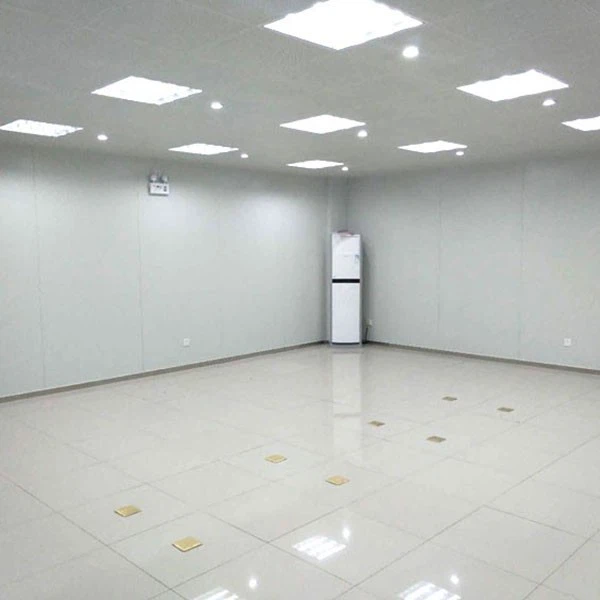

Modular Shielded Room
A Modular Shielded Room is a pre-fabricated room that can be easily assembled and disassembled. These rooms are often used for temporary or mobile applications, such as field testing or military operations.
The materials used in a Modular Shielded Room are typically lightweight and easy to transport. They may include aluminum frames, steel panels, and conductive gaskets. The modular design allows for quick installation and customization, making it a popular choice for many industries. Check out Modular Shielded Room for more details.
Electromagnetic Shielding Enclosure
An Electromagnetic Shielding Enclosure is a smaller, self-contained unit that's used to protect sensitive electronic equipment from electromagnetic interference. These enclosures are often used in laboratories, data centers, and medical facilities.
The materials used in an Electromagnetic Shielding Enclosure are similar to those used in a larger shielded room, but they may be more compact and lightweight. They may include copper or aluminum sheets, conductive foam, and magnetic shielding materials. You can find more information about Electromagnetic Shielding Enclosure.
Conclusion
As you can see, there are several materials used to build an EMC Shielded Room, each with its own unique properties and advantages. The choice of materials depends on the specific requirements of the room, such as the frequency range to be blocked, the size and shape of the room, and the environmental conditions.
If you're in the market for an EMC Shielded Room, I encourage you to contact us to discuss your needs. Our team of experts can help you choose the right materials and design a custom solution that meets your specific requirements. Whether you need a small electromagnetic shielding enclosure or a large RF shielded room, we've got you covered.
